Payment concept

Payment service will manage orders and transactions which allows client application to integrate payment gateway to allow users to purchase digital items from application.

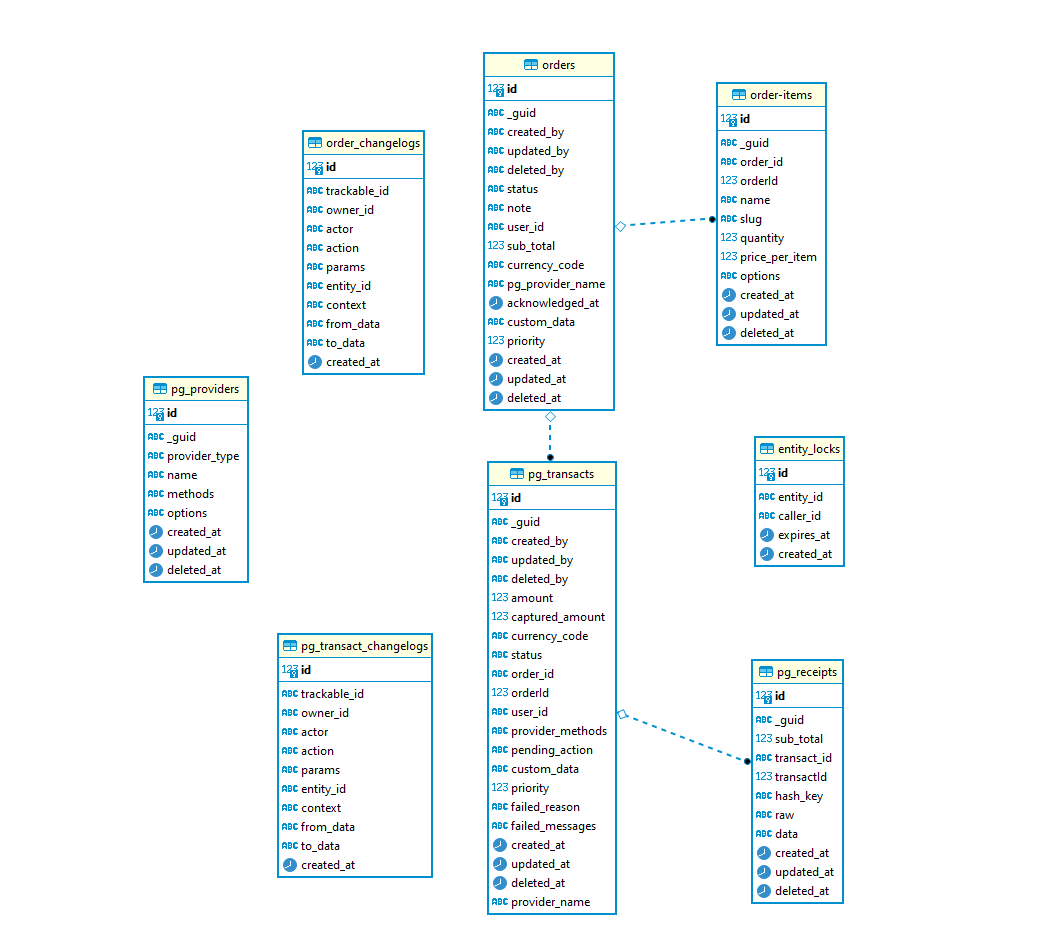

Database schema

Orders

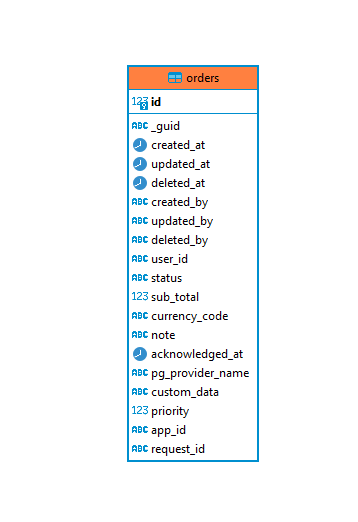

Order will manages a single purchasing from user, it includes many order items that define item name, quantities and price for each items.

Order properties

Field	Type	Values	Description
status	Enum	OrderStatus	status of order.
sub_total	Decimal		total order price.
currency_code	String(10)	USD, VND	3 characters for currency code, default VND.
note	Text		note for admin
custom-data	Record		any user provide custom json data.
request-id	String(96)		(Optional) request id from caller service, for tracking perpose.
app-id	String(96)		(Optional) app id generate the request.

export enum OrderStatus {
  PLACED = "PLACED", // The order has been placed.
  PAYMENT_PENDING = "PAYMENT_PENDING", // The payment for the order is pending.

  PAYMENT_FAILED = "PAYMENT_FAILED", // The payment for the order has failed, can be repay ?
  PAYMENT_CANCELED = "PAYMENT_CANCELED", // The payment for the order has been canceled.
  PAYMENT_SUCCEEDED = "PAYMENT_SUCCEEDED", //  The payment for the order has succeeded.

  CONFIRMED = "CONFIRMED", // The order has been confirmed or shipped
  ACKNOWLEDGED = "ACKNOWLEDGED", //  The order has been acknowledged or delivered
  COMPLETED = "COMPLETED", // The order has been completed, final state

  ABANDONED = "ABANDONED", // The order has abandoned, final state
  CANCELED = "CANCELED", // The order has been canceled, final state
}

OrderItem Properties

Field	Type	Values	Description
name	String(255)		displayable name.
slug	String(255)		url friendly name, ex: item-upgrade-1
quantity	Int		quantity of item
price_per_item	Decimal		price per item in quantity.
options	Record		any custom options for the item.

Paygate Providers

Paygate Providers will present for payment gateways with API configuration, such as Google Play, Apple Store, Momo, Paypal, Stripe. Each gateway can have multiple provider records with difference API configuration or accounts.

Field	Type	Values	Description
provider-type	String(100)	apple-store, google-play	paygate provider type
name	String(100)		unique identifier name
methods	Array	PgProviderMethod	supported methods
options	Record		option to connect into 3rd-party paygates

export enum PgProviderMethod {
  VERIFY_RECEIPT = "verify-receipt",
}

Paygate Transactions

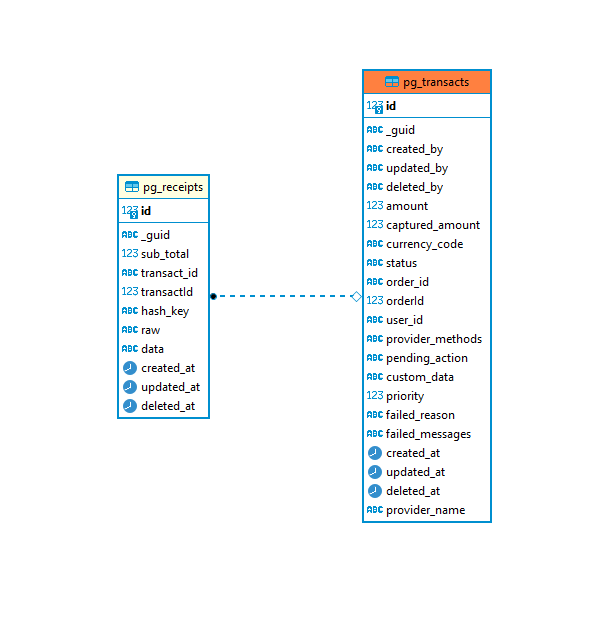

Paygate Transactions will manages a single payment transaction from a single paygate provider. There will be many ways to interact and update paypage transaction depend on which methods that payment gateway provides.

Field	Type	Values	Description
status	Enum	PgTransactStatus	Status of transaction
userId	Id		User id.
amount	Decimal		Amount in transaction
capturedAmount	String(10)		Amount that captured in transaction
currencyCode	String(10)	USD, VND	3 characters for currency code, default VND.
providerName	String(128)		Provider name that issue the transaction.
providerMethods	Array	PgProviderMethod	Support methods of provider.
orderId	Record		Order id.
pendingAction	Enum	PgPendingAction	Pending action need to be process.
customData	Record		Any user provide custom json data.
failedReason	String(64)		The short string reason that transaction failed.
auditMessages	String Array		Any audit messages.

/**
 * These enum values represent the possible states a transaction can be in during its lifecycle within a payment gateway or payment processing system.
 */
export enum PgTransactStatus {
  PENDING = "PENDING", // The transaction is pending and has not started processing yet, maybe waiting for user to input details
  PROCESSING = "PROCESSING", // The transaction is currently being processed.

  FAILED = "FAILED", // The transaction has failed.
  CANCELED = "CANCELED", // The transaction has been canceled.

  AUTHORIZED = "AUTHORIZED", // The transaction has been authorized.
  CAPTURED = "CAPTURED", // The transaction has been successfully captured or completed.
}

export enum PgPendingAction {
  RECEIPT_VERIFIED = "receipt-verified",

  MARK_AS_CANCELED = "mark-as-canceled",

  MARK_AS_FAILED = "mark-as-failed",
}

Resolve a transaction status

In-app-purchase

• Client mobile app will submit receipt data
• The transaction will success if the receipt data valid
• The transaction will failed if the receipt data invalid

Banking

• Client show bank transfering account and waiting for user to top-up
• Service will poll for top-up transaction and update transaction status
• or admin resolve transaction status manually after checking bank account

....

Enity locking

A simple mechanism allows to lock an entity (Order, Transact) to prevent multiple access in multi threading environment

Characteristics

• Only one locked entity allow at a time (locked key is entity id, ex Order id...)
• Successful lock with return lock id, the thread must store this lock id in order to unlock it, any subsequence lock arquired calls will throw (HTTP 409)
• Only call with right lock id and entity id can unlock
• To prevent an entity is locked forever, an lock expires time is required, lock will be unlocked automatically when expired
