Auth Concept

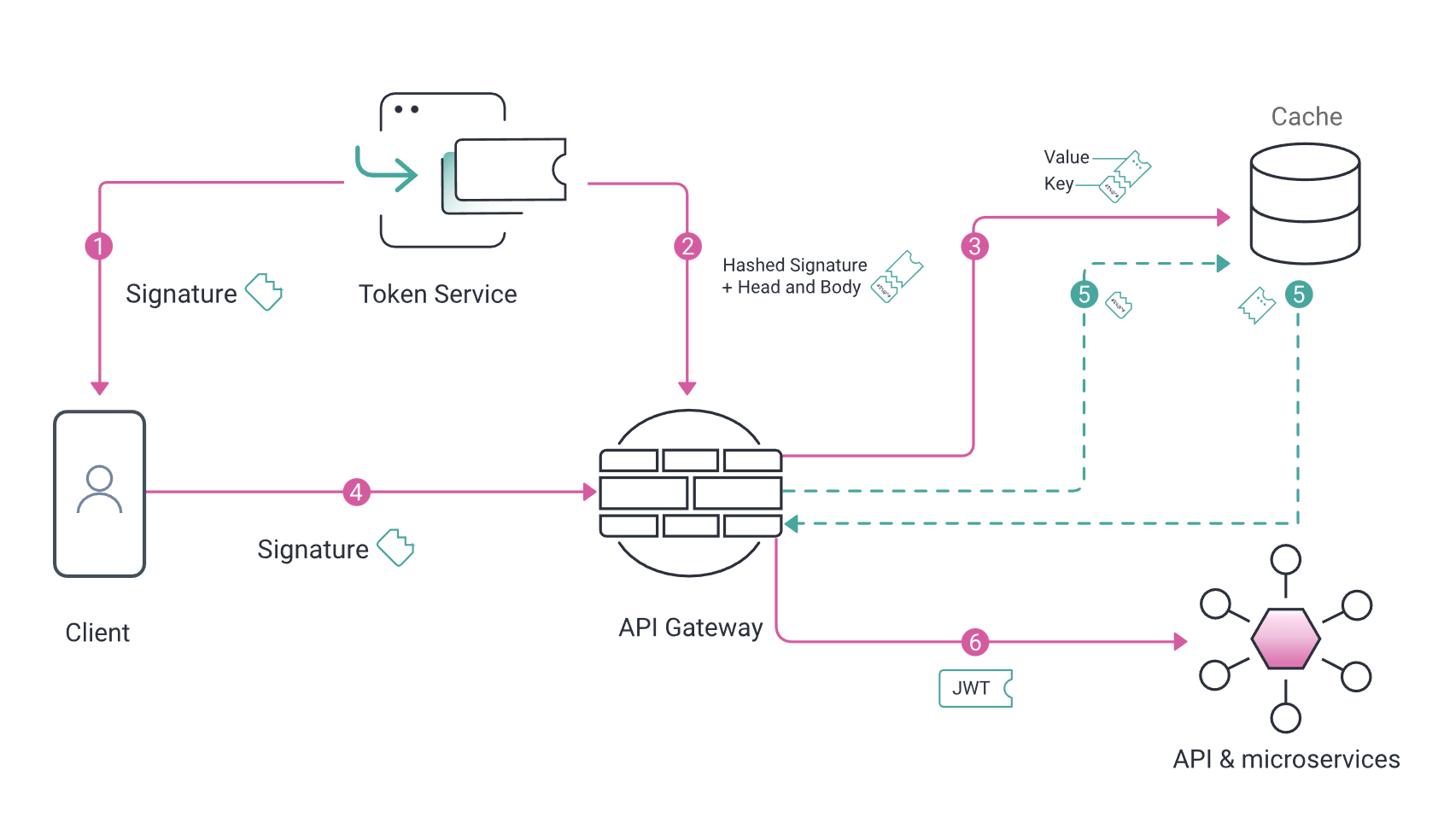

The Split Token

Reference

How internal service check user for authorization

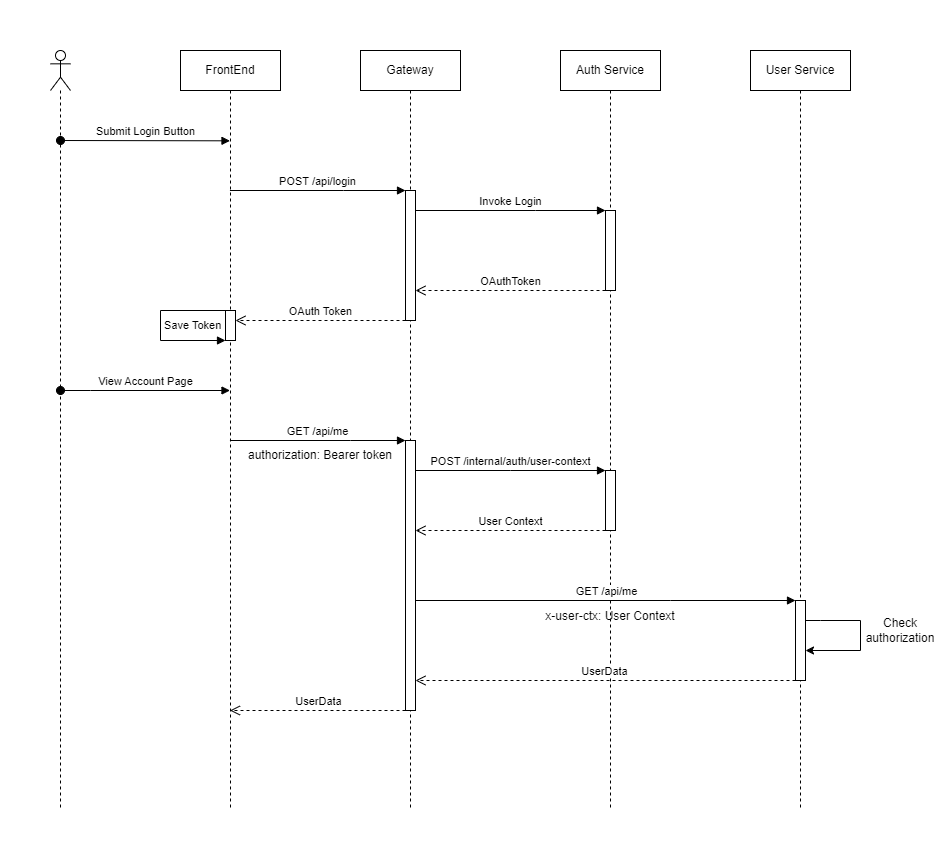

Sequence diagram

[Client] and [ApiGateway] communicate with each others via OAuthToken (mainly Access Token)

[ApiGateway] and [Internal Services] communicate via UserContext

OAuth Token

Result from any POST /api/auth/login calls is OAuthToken object that agree uppon OAuth 2 Specification

class OAuthToken {
  accessToken: string;
  accessTokenExpiresAt?: Date;
  refreshToken?: string;
  refreshTokenExpiresAt?: Date;
  scope?: string;
  userId?: string;
  clientId?: string;
  message?: string;
}

Properties

Field	Description
accessToken	a string representing the access token obtained from the OAuth provider.
accessTokenExpiresAt	an optional date object representing the expiration date of the access token.
refreshToken	an optional string representing the refresh token obtained from the OAuth provider.
refreshTokenExpiresAt	an optional date object representing the expiration date of the refresh token.
scope	an optional string representing the scope of the access token.
userId	an optional string representing the user ID associated with the access token.
clientId	an optional string representing the client ID associated with the access token.

Usage

OAuthToken is used for indentifying user to interact with Api endpoints

Token expirations

OAuth Tokens include AccessToken and RefreshToken that always have expiration date (with exception for Guest user that has RefreshToken never expires).

When AccessToken is expired

• Use RefreshToken to retreive new AccessToken.
• API server will always return 401 for any authenticated
• Application can check x-error-code with value access-token-expired in response header to dertimined the token is expired

When RefreshToken is expired

• Users must need to re-login again.
• Application can check x-error-code with value refresg-token-expired in response header to dertimined the token is expired

User context

The UserContext class is used by an API gateway to exchange information with an authentication service using an access token. It represents the context of a user and used to authorized access to other internal services.

Properties:

Property	Description
id	The user's unique identifier.
clientId	(optional) The client identifier associated with the user.
authorization	(optional) Authorization details, such as token type and access token.
user	(optional) The authenticated user object or reference.
userError	(optional) Error or issue associated with the user.
data	(optional) Additional data related to the user context.

User roles

User can has one or more of following roles: user, admin, sysadmin

Roles list:

Property	Description
user	Normal user, can only access owner account data
admin	Admin user, can manage all app data
sysadmin	Sysadmin user, the same as admin user but allow to update system config
